Green Surface EVC outstation

Brand: CTEC
Product Code: EVC302GS
Availability: 3-5 Days

£171.91 Inc VAT £143.26 Ex VAT

Qty

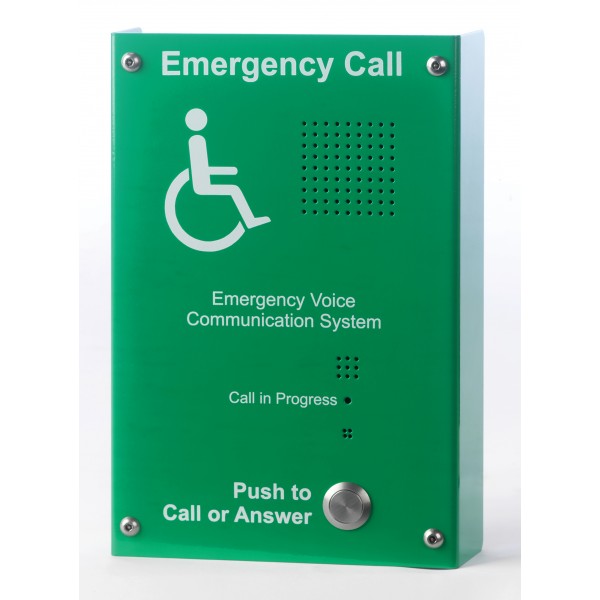

Green Surface EVC outstation

A green hands-free EVC outstation, surface mounting, suitable for use with C-TEC's SigTEL disabled refuge/emergency voice communication system.

Allows anyone located in a disabled refuge area to communicate with a SigTEL Master Controller at the touch of a button (and vice versa).

Offers true duplex speech. Features a ‘Push to Call or Answer’ button, a 'Call in Progress' LED, buzzer, microphone and loudspeaker.

Includes connections for an optional induction loop system and a general-purpose open collector output that closes on activation of the unit.

Approvals/certifications                 Facilitates compliance with BS5839-9 when correctly installed.
Supply/operating voltage    11V DC derived from a compatible SigTEL Master Controller (drops to 6 V DC when in use).
Quiescent current       3mA
Activation current                                   25mA (current draw when intercom is in use).
Open collector outputs    O/P +Ve & O/P –Ve (closes when outstation is active, typically used to trigger a third party CCTV camera, opto-isolated, normally open, max. 24 V DC, 3 mA).
Indicators                                                 Red call in progress LED
Controls                                                    External 'Push to Call or Answer' button (Off Hook); Internal Loudspeaker volume control; Engineer’s “On Hook” and “Off Hook” pins.
Expansion connections    AFILS +Ve & AFILS –Ve (typically connected to the line-level input of an optional induction loop amplifier): Off-Hook and -Ve (can be optionally connected to an NC951                                                                     accessible toilet alarm kit (see instructions for details).
Product dimensions (mm)    160 W x 240 H x 53 D mm.
Construction & finish                             Green steel.
IP Rating IP20.
Weight    1.3 kg.
Operating conditions/temperature     -5ºC to +40ºC. Max relative humidity: 95%.

Notes Microphone frequency response 250 Hz to 5 kHz ±3 dB; Loudspeaker frequency response 250 Hz to 4 kHz ±3 dB; Audio output level: 0 dB (775 mV) balanced line.
