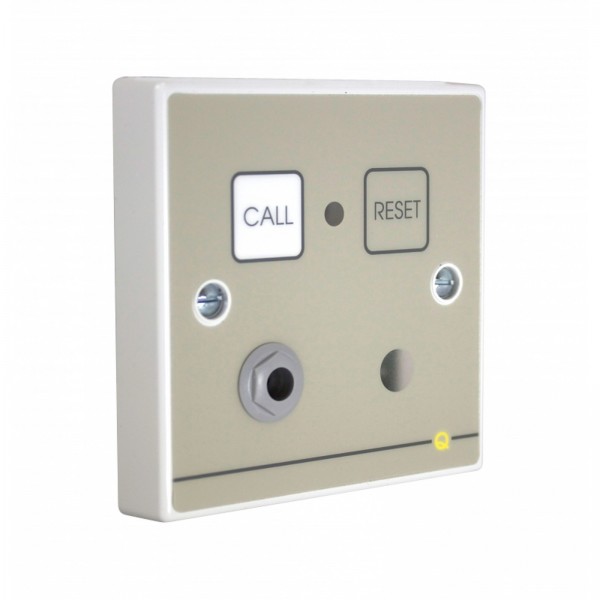

Quantec Call Point (IR receiver and Sounder)
- Brand: CTEC
- Product Code: QT602RS
- Availability: 3-5 Days
£49.91 Inc VAT £41.59 Ex VAT
This product has a minimum quantity of 4
Quantec Call Point (IR receiver and Sounder)
A Quantec Call button, with a Reset button and red/green confidence light.
Onboard infrared receiver accepts calls from compatible Quantec infrared transmitters.
Can make up to 7 levels of call - Standard, En-suite, Help Required, Emergency, Attack, Presence & Attendance (dependent on configuration and ancillary devices used).
Remote socket allows the connection of optional tail call leads, pressure mats, etc.
Can be programmed to operate in a multitude of ways using a QT423 configurator.
Connections provided for additional slave devices such as ceiling pulls, overdoor lights, slave infrared receivers and more.
Power requirements Nominal 24V DC (from Quantec Controller/Network).
Quiescent current Less than 3mA.
Alarm current 14mA.
Indicators Red/green confidence LED.
Controls Call button; Reset button. (QT602RSM magnetic reset version also available).
Connections Net +: Net -; R; G; L+; SW; IR; SLV.
Expansion connections R; G; L+; SW; IR & SLV terminals allow the connection of optional slave overdoor lights, slave call points, slave ceiling pulls and slave infrared receivers.
6.35mm Remote Jack Socket Yes - for the optional connection of tail call leads/pear pushes, pressure mats and movement detectors.
Onboard Sounder Yes - can be optionally used for Quantec's Call Follower Sounder feature (if Quantec is in Night mode and the call point is in Presence, the call point will emit a soft tone to let staff know if a call occurs elsewhere on the system (as programmed).
Onboard Infrared Receiver Yes - will accept calls from compatible Quantec infrared transmitter.
Product dimensions (mm) 87 W x 87 H x 35 D mm. Can be mounted on a standard UK 25mm single gang flush or surface back box.
Construction & finish Plastic.
IP Rating IP20.
Weight 75g.
Operating temperature -5ºC to +40ºC. Max relative humidity: 95%.
