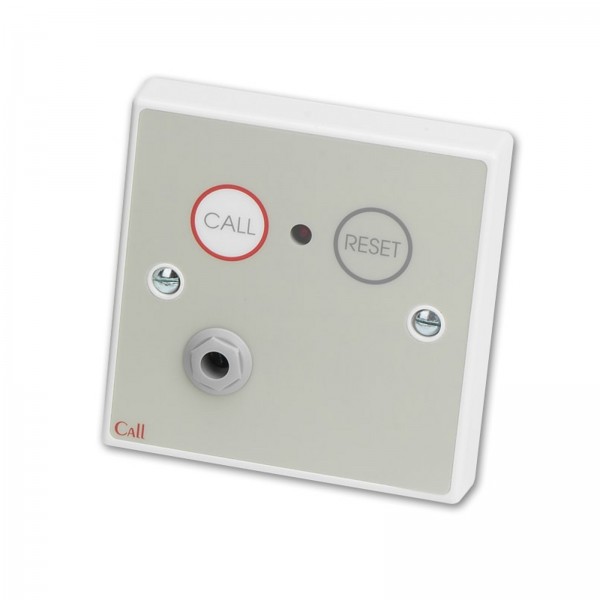

CTEC 800 Series Standard Call Point (Button Reset)
- Brand: CTEC
- Product Code: NC802DB
- Availability: In Stock
£27.73 Inc VAT £23.11 Ex VAT
CTEC 800 Series Standard Call Point (Button Reset)
A standard call point with button reset and remote sockets.
Includes a 6.35mm jack plug socket for the connection of an optional tail call lead, pressure mat or other ancillary calling devices.
Red reassurance LED confirms a call has been made.
Onboard reset button cancels calls made from the NC802DB and standard calls made from other devices wired on the same zone (such as ceiling pull units in En-Suite areas).
Mounts on a standard UK 25mm single gang flush or surface back box.
Quiescent current 0mA (none).
Alarm current Determined by the type of control equipment and number / type of field devices connected to the system.
Indicators Red Reassurance LED (lit constant for Standard calls).
Controls Call button (generates Standard calls only); Reset button (cancels Standard calls from the NC802DB and Standard calls from other devices wired on the same Zone).
Connections SIG (Signal); -Ve (Negative); RC (for the optional connection of an NC807C ceiling pull unit.
Expansion connections Yes. For an optional NC807C ceiling pull unit.
Onboard Sounder Yes. For optional tail call leads, floor pressure mats, air switches etc.
Onboard Infrared Receiver No.
Product dimensions (mm) 87 W x 87 H x 32 D mm. Mounts on a UK 25mm single gang back box.
Construction & finish Plastic.
IP Rating IP20.
Weight 64g.
Operating temperature -5ºC to +40ºC. Max. relative humidity 95% non-condensing.
