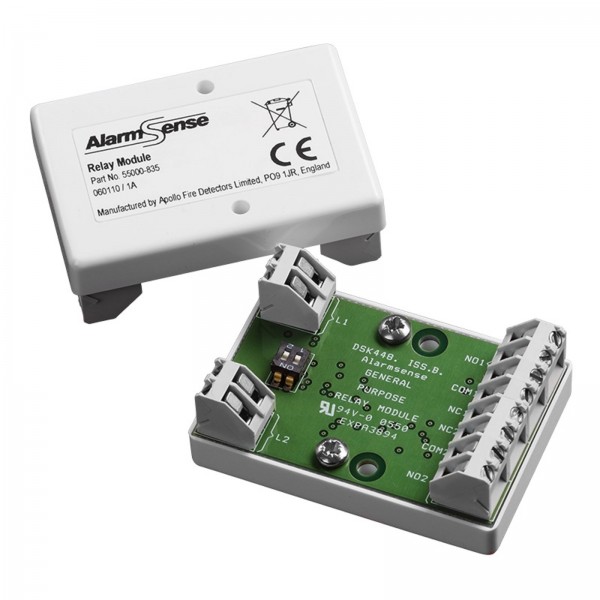

Apollo AlarmSense Alarm Relay Module
- Brand: Apollo
- Product Code: 55000-835
- Availability: 3-5 Days
£31.27 Inc VAT £26.06 Ex VAT
Apollo AlarmSense Alarm Relay Module
This module is suitable for use with C-TEC's CFP AlarmSense range of 2-8 Zone Two-Wire Fire Panels.
Enables devices such as visual indicators, pillow/bed alarms and radio vibrating or paging devices to be connected to the fire detection system.
Can also be used to monitor and switch conventional sounders and visual indicators.
Operates in three configurations:-
(1) relay activation places the AlarmSense Zone voltage across the output terminals.
(2) relay activation reverses the polarity of the AlarmSense Zone voltage across the output terminals (to allow the use of monitored conventional sounders fitted with series diodes).
(3) Two sets of volt-free contacts for use with door closure units, etc.
The relay can be set to priority or non-priority by means of a DIL switch.
**For use only with Alarmsense ancillaries**
Protocol/compatibility Suitable for use with C-TEC's CFP AlarmSense range of 2-8 Zone Two-Wire Fire Panels.
Supply/operating voltage 9 to 33V DC. (Relay operation voltage less than 18V; Relay reset voltage less than 15V).
Quiescent current 20µA.
Product dimensions (mm) 65 W x 45 H x 25 D mm.
Weight 35g.
Properties Relay contact ratings 1A @ 30VDC.
Operating temperature -40ºC to +70ºC.
Notes Alarm relay resets on silence.
